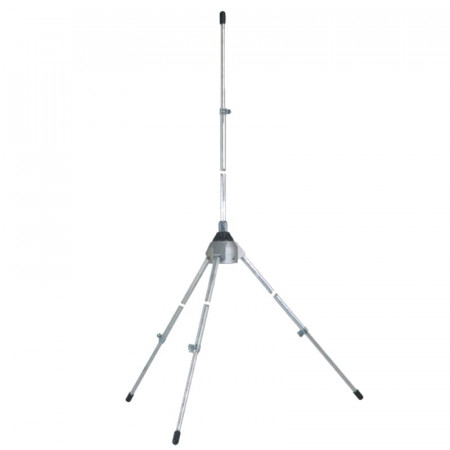

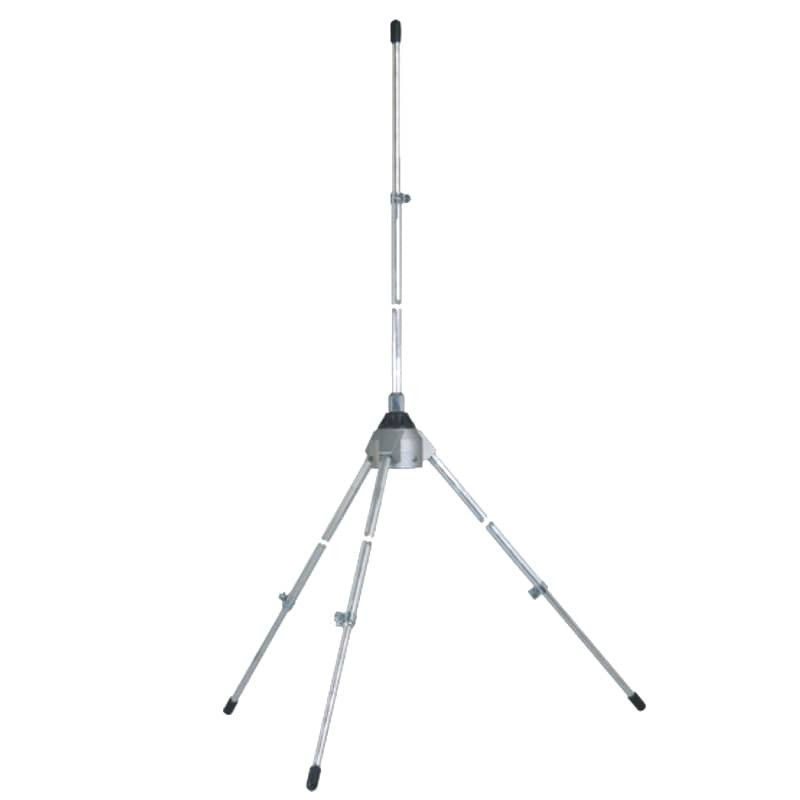

SIRIO GPA66108

SIRIO GPA66108

Features:

Base station antenna, Mono-band
Omnidirectional, Unity gain
Made of aluminium alloy 6063 T-832
Perfect protection against the worst weather conditions
Tunable by whip length adjusting

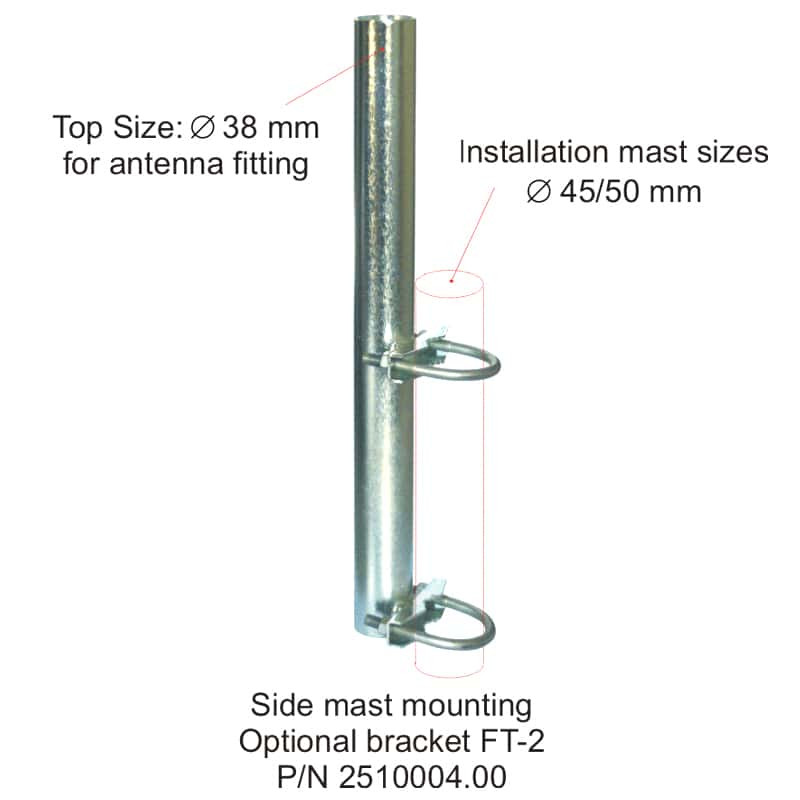

Side mast mounting allowed by optional bracket FT-2 code 2510004.00
Electrical Data
Type: 1/4? ground plane large band
Frequency range: GPA 66-108: tunable 66...108 MHz
Impedance: 50
Radiation (H-plane): 360° omnidirectional
Radiation (E-plane): beamwidth @ -3 dB = 86
Radiation angle: 0
Polarization: linear vertical
Gain: 0 dBd - 2.15 dBi
Bandwidth @ SWR =2: 6.5 MHz at 66 MHz
SWR @ res. freq.: = 1.2 @ start freq.
Max. Power (CW) @ 30°C: GPA 66-108: 500 Watts

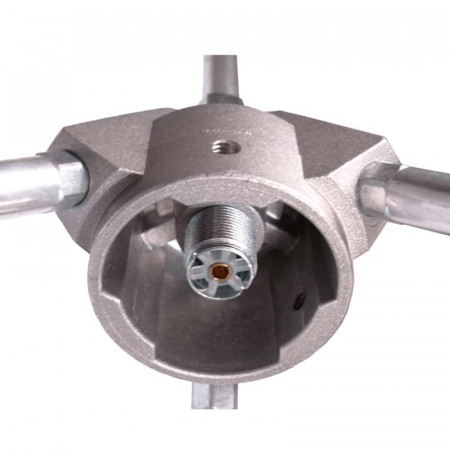

Connector: UHF-female Mechanical Data
Materials: Aluminium, Chromed brass, Nylon
Wind load / resistance: 54 N at 150 Km/h / 150 Km/h
Wind surface: 0.05 m
Height (approx.): 1930 mm
Weight (approx.): 700 gr
Mounting mast: Ø 35-40 mm
